AD-2030 Wet Horizontal Unit (Single Phase / 3,000A AC)


  • AD-2030
  • : Wet Horizontal Unit (Single Phase / 3,000A AC)

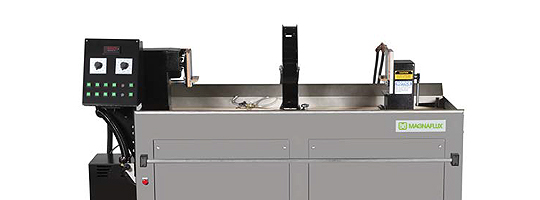

    Magnaflux AD-2030



    The A-Series is our most economical standard wet bench unit. It offers great part mobility for finding surface and sub-surface defects, and the versatility of using AC or DC magnetization (except for the A-2030). The two outputs are independently adjustable to set each magnetic field, circular or longitudinal. Magnetization shop time is adjustable, allowing better development of indications.



    STANDARD FEATURES



    Exterior:

    Innovative pump system for fluid delivery, agitation with easy maintenance access

    Push bar design for easy activation

    Current assurance indicator for magnetic current flow

    Large, easy to read Digital Ammeter

    Independent Contact and Coil Current Controls

    12 inch (30 cm) diameter coil

    Footswitch-activated pneumatic headstock

    Adjustable tailstock with crank

    Stainless steel tank

    Front and rear maple hardwood grilles

    Interior:

    Microprocessor control advanced technology; reduce components and increase reliability

    Solid state circuitry

    Liquid Resistant panels, allow ventilation while inhibiting fluid intrusion

    SPECIFICATIONS

    3000 amp AC magnetizing current capability at contacts

    Demag—One Touch decaying AC

    Duty Cycle 0.5 seconds on, 10 Seconds off (5% with Maximum of 5 seconds)

    54 inch (137 cm) headstock/tailstock capacity

    Infinitely variable current control

    Available Voltages: 230, 380, 415, 460, 575, 50 or 60 hertz, single phase power

    Recommended 20 Gallon (75 Liter) Tank Fluid Capacity

    Minimum 40 PSI with 5 CFM capability

    89” (224 cm) x 41” (104 cm) Foot Print, allow 24” (61 cm) per side for ventilation

    OPTIONAL FEATURES

    16” coil (41 cm) w/raising block up-grade (In lieu of 12” coil)

    Rotating Contacts (70 lb. part capacity, Minimum 16" coil required)

    NRTL Certification to CSA C22.2 No. 61010-1

    Dual Palm Button

    Configure Unit for 102" Part Capacity

    Recommended 32 Gallon (122 Liter) Tank Fluid Capacity

    136” (346 cm) x 41” (104 cm) Foot Print, allow 24” (61 cm) per side for ventilation

    Configure Unit for 146" Part Capacity

    Recommended 55 Gallon (209 Liter) Tank Fluid Capacity

    180" (458 cm) x 41" (104 cm) Foot Print, allow 24" (61 cm) per side for ventilation
