CSV-10 Stationary Power Pack (3-Phase / 10,000A)


  • CSV-10
  • : Stationary Power Pack (3-Phase / 10,000A)

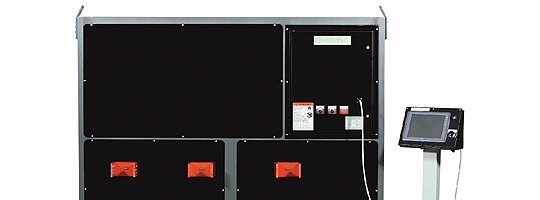

    Magnaflux CVS-10



    Magnaflux understands some parts will not lend themselves to traditional units. Some of these parts are too large, some need special handling, and some are better processed dry. The Magnaflux Stationary Power Pack Series (CSV, CMD, and CD Power Packs) offers a solution to the parts that are too large for normal systems. Three independent outputs help to speed up processing time, and a pulse feature allows development of larger areas. These units feature 3 phase rectified to FWDC output.







    STANDARD FEATURES

    Exterior:

    Three Independent Current Controls

    One to Four Pulses selectable (to develop larger areas)

    One to Four Cycles (to rotate through the multiple vector output)

    Current Assurance Indicators

    Three Large, easy to read Digital Ammeter Displays

    Remote Mag Receptacle (Use with ZB-100FMB)

    115 Volt Accessory Outlet

    Interior:

    PLC control advanced technology; reduce components and increase reliability

    RS-232 port for computer interface

    Modular digital solid state circuitry

    Quick Break Circuitry

    SPECIFICATIONS

    10,000 amp three phase rectified to FWDC output

    Three Independent Bus Bar Outputs

    Reversing DC Demag-Ultra Low Frequency (Output 1 only)

    Current capability rated using 30 feet of 1,000 kcmil cable.

    Duty Cycle 0.5 seconds on, 20 Seconds off (2.5% with maximum of 2 seconds)

    Available Voltages: 380, 415, 460, 575, 50 or 60 hertz, three phase power

    OPTIONAL FEATURES

    Demagnetization on Outputs 2 & 3
