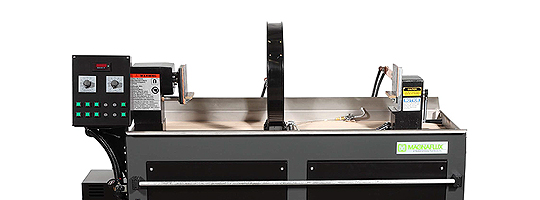

Magnaflux D-2060

The D-Series (3 Phase Unit) is our most powerful standard wet bench unit. It offers maximum magnetization for finding surface and sub-surface defects while using minimal power. The two outputs are independently adjustable to set each magnetic field, circular or longitudinal.

STANDARD FEATURES

Exterior:

Innovative pump system for fluid delivery, agitation with easy maintenance access

Push bar design for easy activation

Current assurance indicator for magnetic current flow

Large, easy to read Digital Ammeter

Independent Contact and Coil Current Controls

12 inch (30 cm) diameter coil

Foot-switch- activated pneumatic headstock

Adjustable tailstock with crank

Stainless steel tank

Front and rear maple hardwood grilles

Interior:

Microprocessor control advanced technology; reduce components and increase reliability

Quick break on Coil Circuit

RS-232 port for computer interface

Solid state circuitry

Liquid Resistant panels, allow ventilation while inhibiting fluid intrusion

SPECIFICATIONS

6000 amp 3Phase FWDC magnetizing current capability at contacts

Ultra Low Frequency reversing DC Demagnetization

Duty Cycle 0.5 seconds on, 10 Seconds off (5% with Maximum of 5 seconds)

54 inch (137 cm) headstock/tailstock capacity

Infinitely variable current control

Available Voltages: 230, 380, 415, 460, 575, 50 or 60 hertz, 3 phase power

Recommended 20 Gallon (75 Liter) Tank Fluid Capacity

Minimum 40 PSI with 5 CFM capability

89” (224 cm) x 41” (104 cm) Foot Print, allow 24”(61 cm) per side for ventilation

OPTIONAL FEATURES

Coil of 16” ID with raising blocks (in lieu of the 12” ID coil)

Coil of 20” ID with raising blocks (in lieu of the 12” ID coil)

Coil of 25” ID with raising blocks (in lieu of the 12” ID coil)

19.5” inch (50 cm) clam-shell coil (3-turn) w/raising block up-grade (In lieu of 12” coil)

Reinforced Rail for heavier part load (4,000 lbs. part capacity)

Oversized Contact assembly (12”x 12”) for headstock & tailstock

Rotating Contacts (70 lb. part capacity - Minimum 16" coil required)

MOD 2.5 AC - Additional 2,500 Amps of AC current

NRTL Certification to CSA C22.2 No. 61010-1

Dual Palm Button

Configure Unit for 102” Part Capacity-

Recommended 32 Gallon (122 Liter) Tank Fluid Capacity

136” (346 cm) x 41” (104 cm) Foot Print, allow 24” (61 cm) per side for ventilation

Configure Unit for 146” Part Capacity

Recommended 55 Gallon (209 Liter) Tank Fluid Capacity

180” (458 cm) x 41” (104 cm) Foot Print, allow 24”(61 cm) per side for ventilation
