1093A/B/C GPS Satellite-Controlled Clock (500 ns)


  • 1093A/B/C
  • : GPS Satellite-Controlled Clock (500 ns)



    Model 1093A/B/C delivers better than 500 ns accuracy and includes the most highly sought after features in a precision time clock as standard.



    With two terminal strip outputs providing unmodulated IRIG-B and 1 PPS signals, the 1093 is capable of driving multiple loads in parallel. An optional modulated IRIG-B port is available adding greater flexibility.



    Like other Arbiter clock models, various options are available to add features such as NTP/PTP (Network Time Protocol/Precision Time Protocol [IEEE 1588]) support, four additional configurable outputs, high drive IRIG-B outputs, power system time, frequency, and Phase Monitor functions, one Form C (SPDT) fail-safe, LOCKED relay that is compatible with 129 Vdc digital fault recorder inputs; plus many more.



    Versions A/B/C offer various interface options (see photos and Key Features tab). Each product includes the GPS antenna and cable, an appropriate power inlet and power cord, a rack mount kit and an operations manual, all backed by a Limited Lifetime Warranty.

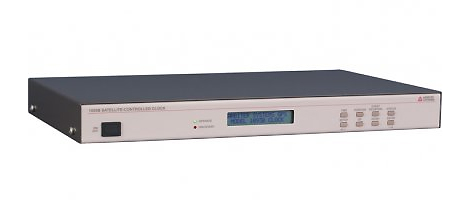

    Model 1093A/B/C is available with three front panel configurations. See photos and Key Features tab for more information.
