Trojan Oil Regeneration System (ORS Series)


  • ORS
  • : Trojan Oil Regeneration System

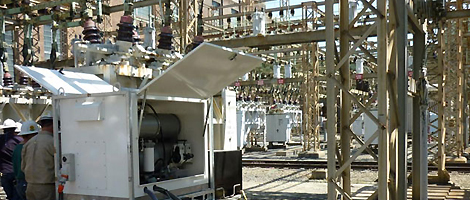

    The Trojan ORS is designed to completely regenerate / reclaim transformer oil and return it to an "as new" condition. The Trojan ORS will remove acidity, sludge, corrosive sulphur & ageing by-products. The system can be configured for either portable or fixed location applications.



    The filter media can be reactivated 200 - 300 times, meaning lower ongoing cost of operation & labour requirements, & making filter media disposal simpler.



    Features – asset management



    Extend the useful life of the transformer

    Remove acidity, sludge, gases & water in the insulation cellulose & oil to exact levels

    Return the oil to an 'as new' condition

    Separates off contaminates

    Minimal oil loss

    Reduce operating costs – less expensive than changing the oil



    Features – using the ORS



    For use on energized and/or de-energized transformers

    Automated Commissioning & Decommissioning Cycles – safe to use on energised transformers

    Safe, long term unattended operation on energised transformers

    Numerous interlocked safety features

    Choice of either re-activated or single use fullers earth media

    Highly automated with screen prompting

    Environmentally friendly – simple disposal requirements

    Remote Communications



    Aged, oxidized transformer oil has a significant effect on the life of the transformer and the dielectric qualities of both the oil and cellulose. It accelerates the destruction of the cellulose insulation and if corrosive sulphur is present, the copper is affected. The polar compounds and sludge in the oil adsorb quantities of dissolved water compared to new oil reducing the dielectric strength.



    The Trojan Oil Regeneration System (ORS) uses a specific grade of adsorbent filter media to return aged, oxidized transformer oil to its original "as new" condition, free of acidity, sludge & oxidation by-products. Colour and oxidation stability are greatly improved and treated oil will meet or exceed the quality requirements of new oil.



    These results can be achieved in a single pass by operating at a reduced flow rate, or by circulating the oil numerous times at a higher flow rate.



    The Trojan ORS can be designed to either of the following specifications:

    Automatically reactivating the filter media (200 - 300 times). This option provides lower costs on labour, consumables, disposal requirements & cost per litre/gallon of removal; or

    Replacing the media when it becomes depleted, which is typically after a single pass.



    Reactivation of the Fullers Earth Media

    The reactivation process removes all contaminants from the filter media, returning it to a 'like new' condition. All contaminates stored in the filter media, such as sludge and decay products are isolated into a separate tank for later disposal. Wastage is usually about 0.1% to 0.3% of the total oil volume being processed. The entire reactivation process is fully automated. The system does not need constant monitoring during the reactivation process, with numerous interlocked safety measures incorporated in the system as a safeguard.
    When the media is fully depleted (approx. 200 - 300 reactivations), it is reactivated a final time returning it to its original inert condition, completely free from oil and contaminants. It can then be disposed into landfill or like (local disposal guidelines may vary).



    ORS Models



    Small, highly portable system:

    Trailer, Stand, Container or Skid mounting options

    Suitable for low towing capacity vehicles

    Access to space restriced sub stations and / or access routes



    Large, portable walk in system:

    Custom Shipping Container, Semi-Trailer or Skid Based mounting options

    Higher oil flow, faster oil processing capability

    More adsorption capacity, process higher quantities of oil before media needs to be reactivated



    Bulk Oil and Recycling System:

    Manufactured to any number of columns

    Can be divided into separate banks of columns

    Continuous oil processing (even while some tanks are being reactivate)

    Suitable for Tank farms and bulk oil storage facilities
